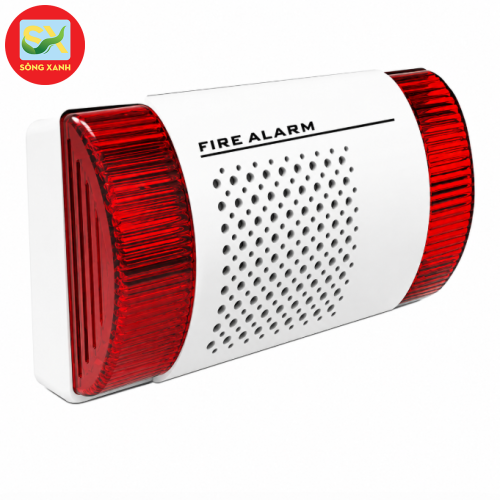

Còi đèn địa chỉ TX7301

Hãng sản xuất:  TANDA

Xuất xứ: UK

Thông số kỹ thuật:

Technical Specification
Compliance EN54-3
Power Rating
Input Voltage Loop Power: 24VDC [18V to 27.5V]
External PSU: 24 VDC [20V to 27.5V]
Typical Current Loop: Standby 0.7mA, Alarm: 1.5mA
[Loop and External PSU] External PSU: Standby 0.6mA, Alarm: 17mA
Saving Current Standby 1.2mA, Alarm: 9mA
[Loop powered]
Sounder Strobe
Protocol/Addressing T&A, Value range from 1 to 254
Address Sequence Single Address: Evacuate tone
Dual Address: 1st Alert Tone / 2nd Evacuate tone
Strobe Light 10 Highlights LED
Material / Colour ABS / RED Glossy finishing
Dimension / Height L:152.5 x W:88.5 x H:46.75 mm (without base)
Weight 184g (with Base), 124g (Without Base)
Class Type A, Indoors
Operating Temperature -10°C to +50°C
Ingress Protection Rating IP21
Humidity 0 to 95% Relative Humidity, Non condensing
